Membrane Solutions Water Treatment Division
Membrane Solutions is known for its state of the art water & wastewater treatment systems, and not only has researched and manufactured our own extremely high performance Membranes and Membrane Modules with an excellent R&D group, and also provides the best water solution and the flexible Membrane Systems as different clients requirements.
Products :
1.Cartridge filter: Melt blown, String wound and Pleated
1.1 Melt Blown(Standard, Big Blue, Embossed, Orange, Grooved)
 |
Length:10'',20'',30'',40'',50'',60'',70''
Micro rating(um): 0.1,1,3,5,10,20,30,50,75,100
OD/ID:64/28mm;115/28mm
Filter Media:Polypropylene
End Cap:222 Flat/222 Fin/226 Flat/226 Fin/DOE/
O-Rings:Silicone/EPDM/Viton/NBR
Core:NA or Polypropylene |

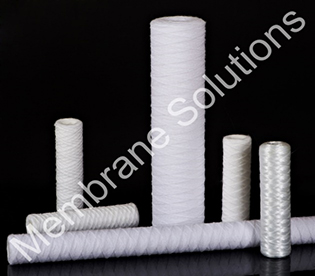

1.2 String wound
 |
Length:10'',20'',30'',40'',50'',60'',70''
Micro rating(um):1,3,5,10,20,30,50,75,100
OD/ID:64/28mm;115/28mm
Filter Media:Polypropylene,Cotton
End Cap:222 Flat/222 Fin/226 Flat/226 Fin/DOE/
O-Rings:Silicone/EPDM/Viton/NBR
Core:Polypropylene/SS304/SS316
|

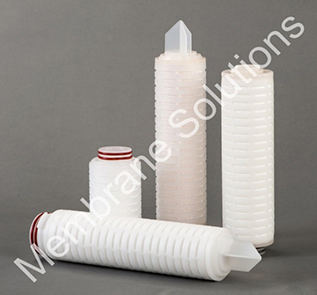

1.3 Pleated cartridge
 |
Length:10'',20'',30'',40'',50'',60'',70''
Micro rating(um):0.1,0.2,0.45,1,3,5.0,10,20,30,50
OD/ID:68±1/32mm
Filter Media:Polypropylene,Glass fiber
End Cap:222 Flat/222 Fin/226 Flat/226 Fin/DOE/
O-Rings:Silicone/EPDM/Viton/NBR
Core:Polypropylene
|
|

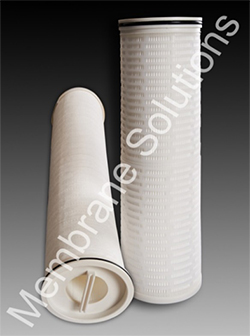

2.High flow
2.1 Equivalent to Pall Ultipleat
 |
Length:20'',40'',60''
Micro rating(um):1,3,5,10,20,30,50,75,100
OD/ID:152/76mm
Filter Media:Polypropylene,Glass fiber
O-Rings:Silicone/EPDM/NBR
Outside Core:Polypropylene or Binding
Inside Core:NA or Polypropylene |

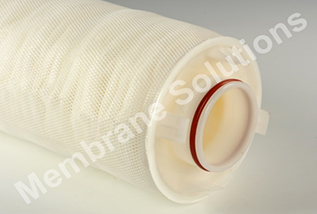

2.2 Equivalent to Parker MegaFlow
 |
Length:40'',60''
Micro rating(um):1,3,5,10,20,30,50,75,100
OD/ID:152/96mm
Filter Media:Polypropylene,Glass fiber
O-Rings:Silicone/EPDM/NBR
Outside Core:Netting
Inside Core:Polypropylene
|

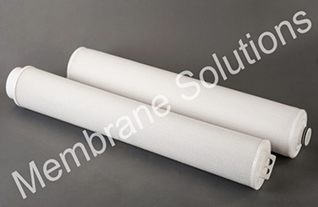

2.3 Equivalent to 3M
 |
Length:40'',60''
Micro rating(um):1,3,5,10,20,30,50,75,100
OD/ID:165/80 or 40mm
Filter Media:Polypropylene,Glass fiber
O-Rings:Silicone/EPDM/NBR
Outside Core:Netting
Inside Core:Polypropylene
|
|
3.PVDF/PES hollow fiber UF module
Size:4040,6040,8040,8060,1060
Pore size:0.03um
ID/OD:0.7/1.3mm
Flow Direction: Outside-in
Flux design:50-150LMH
Max TMP/Feed Pressure: 0.2Mpa
Operation Temperature: 5-40°C
PH:2-10
Max Turbidity:300NTU
Permeate Turbidity:=0.1NTU
Permeate SDI=3
|
|

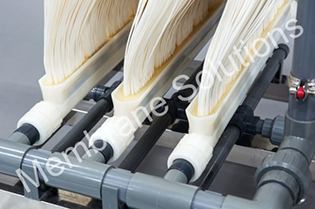

4.Submerged reinforced PVDF hollow fiber for MBR
Model: MS-FSF-4010T(10m2), MS-FSF-6015T(15m2), MS-FSF-8020T(20m2)
Pore size:0.1um
ID/OD:0.9/2.2mm
Flux design: 10-30LMH
Max TMP:-0.05Mpa
Operation Temperature: 5-40°C
PH:2-10
|
|

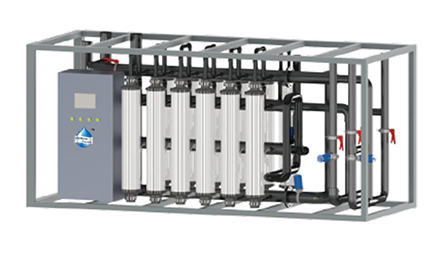

5.Skid/Containerized UF/RO/MBR system
