Advanced Filtration Solutions for Clean Air
Advanced Filtration Technology
Global filtration expertise for gas turbines and industrial air purity.
MANN+HUMMEL is a global filtration expert, offering innovative solutions for a wide range of industries, including gas turbines and industrial environments that demand the highest air purity.
Key Features
- ePTFE Membrane Technology: Provides high filtration efficiency and a long service life.
- Nanofiber Technology: Captures the smallest dust particles on the surface to prevent clogging.
- Robust Construction: Designed to withstand harsh environmental conditions, such as high humidity and pollution.
- Energy Efficiency: Reduces pressure drop, allowing turbines to operate at maximum efficiency.
MANN+HUMMEL products are designed to protect critical machinery, such as gas turbines, from dust, pollutants, and other airborne particles. Our advanced filtration technology ensures that the air entering the engine is clean, leading to increased efficiency, reduced wear and tear, and an extended equipment lifespan.
By using technologies like ePTFE membranes and nanofibers, our filters can capture dust on the surface, making them easy to clean and maintaining a consistently low pressure drop. This not only protects the turbine but also helps increase power output and reduce operational costs.
Whether in coastal environments with high humidity and salt, dusty desert areas, or heavily polluted industrial zones, MANN+HUMMEL's filtration solutions are proven to perform reliably. The robust design prevents damage from moisture and chemicals, ensuring continuous operation and reducing machinery downtime.
MANN+HUMMEL Product Range
Filtration for clean indoor air and for protecting industrial machines and processes.
Air Filters & Filtration Systems

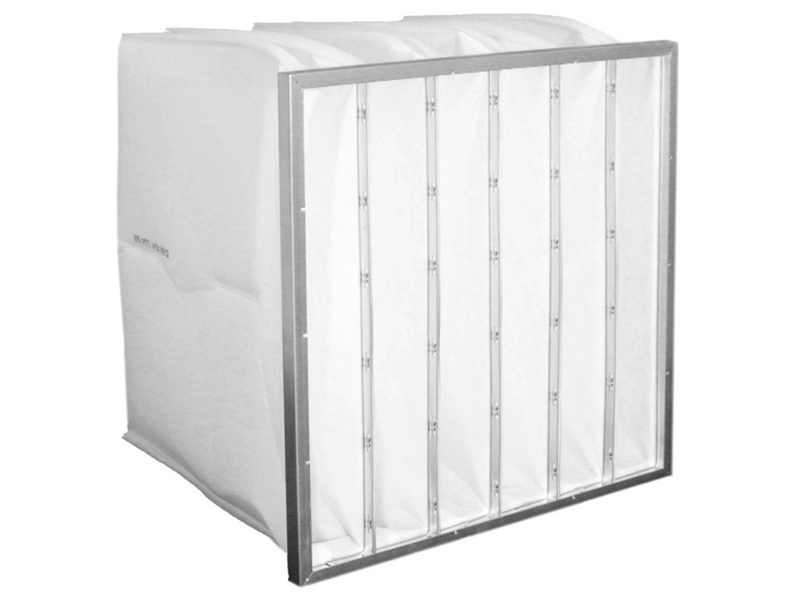

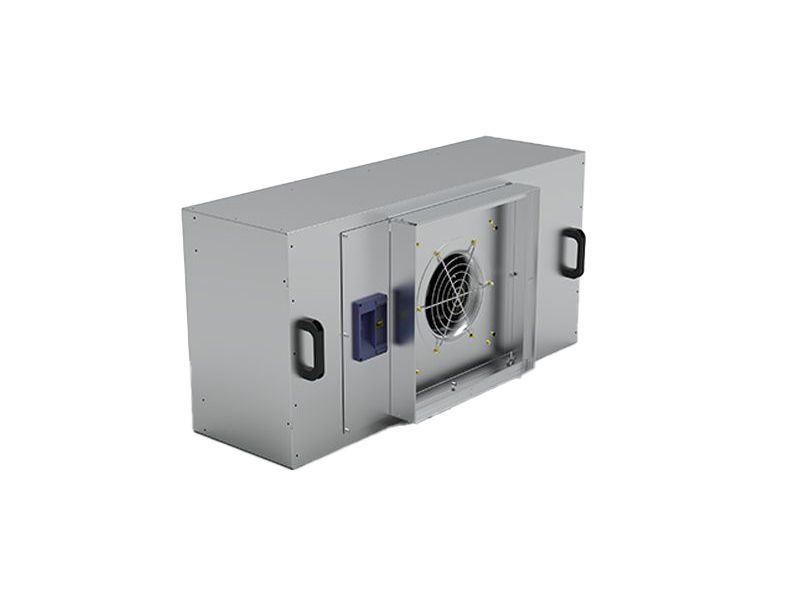

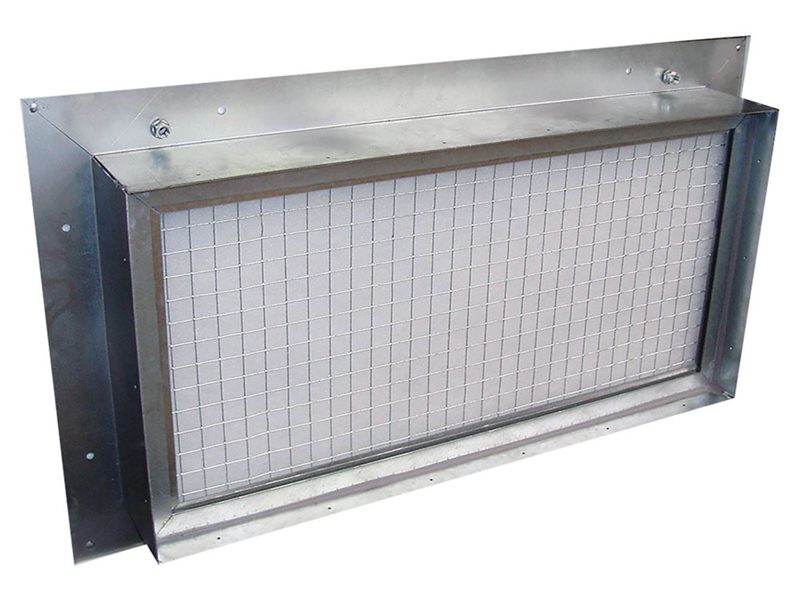

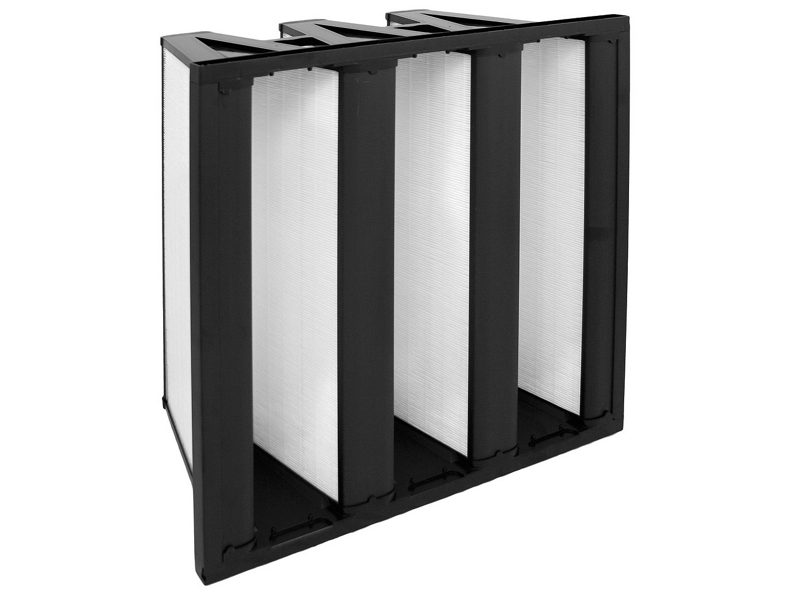

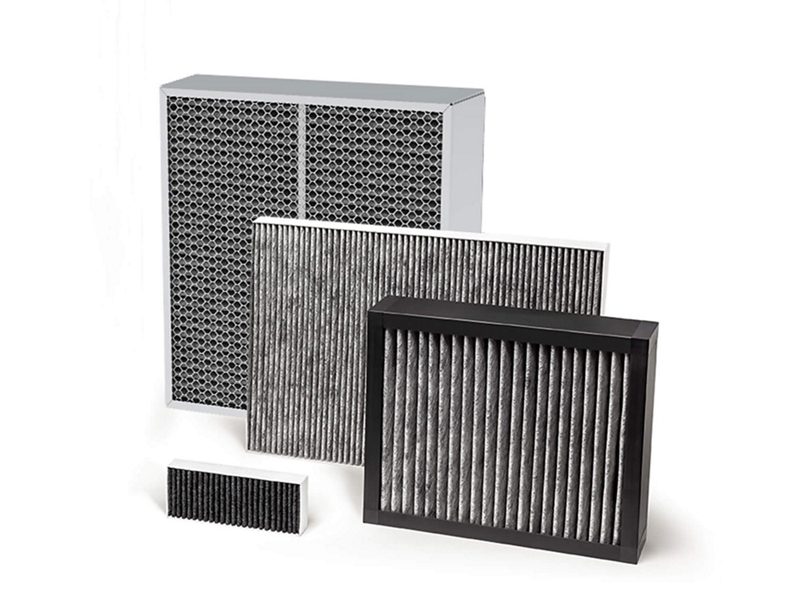

Clean indoor air for buildings, cleanrooms and critical processes, from HVAC pre-filtration to EPA, HEPA and ULPA final filtration. The range also covers filter fan units, HEPA housings and molecular (gas-phase) filtration for removing odours and corrosive gases.
Solutions for Industrial Equipment

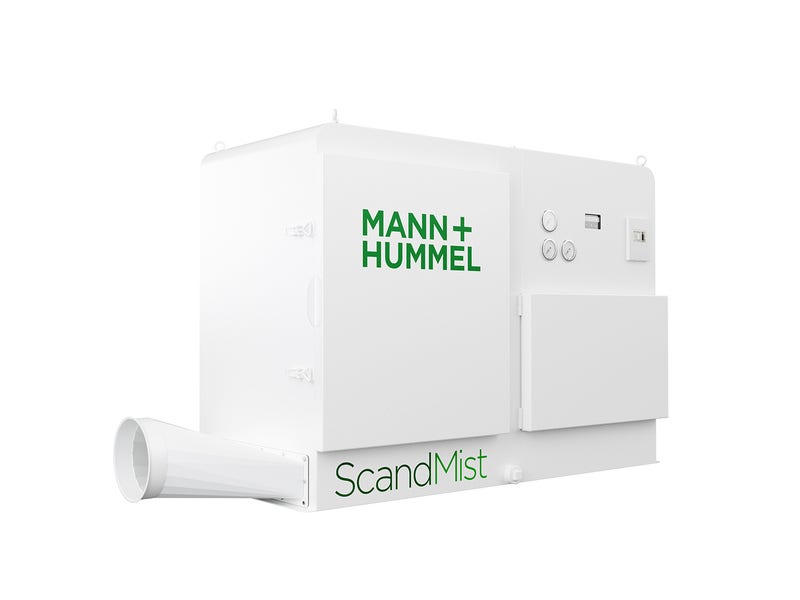

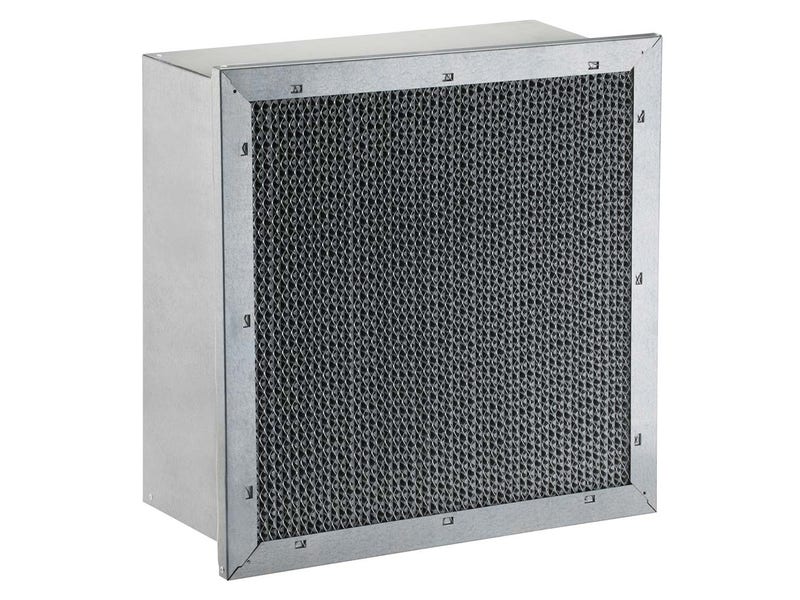

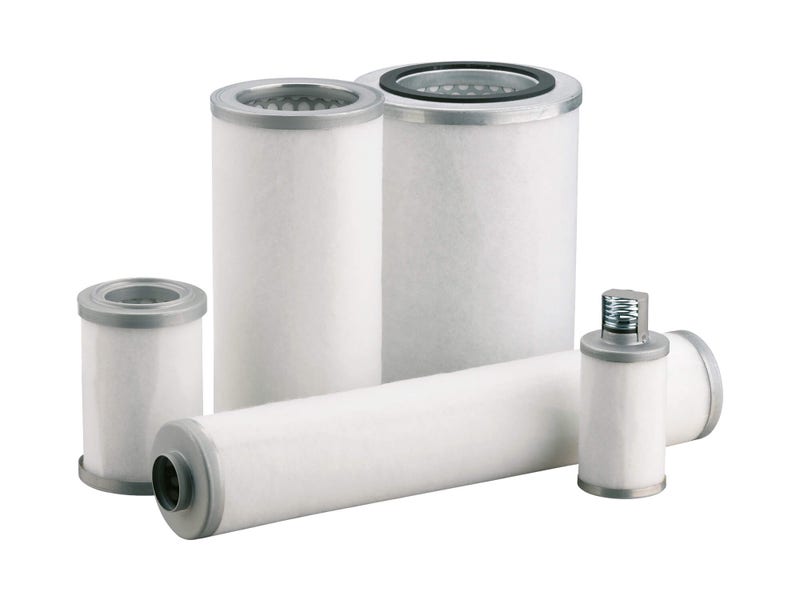

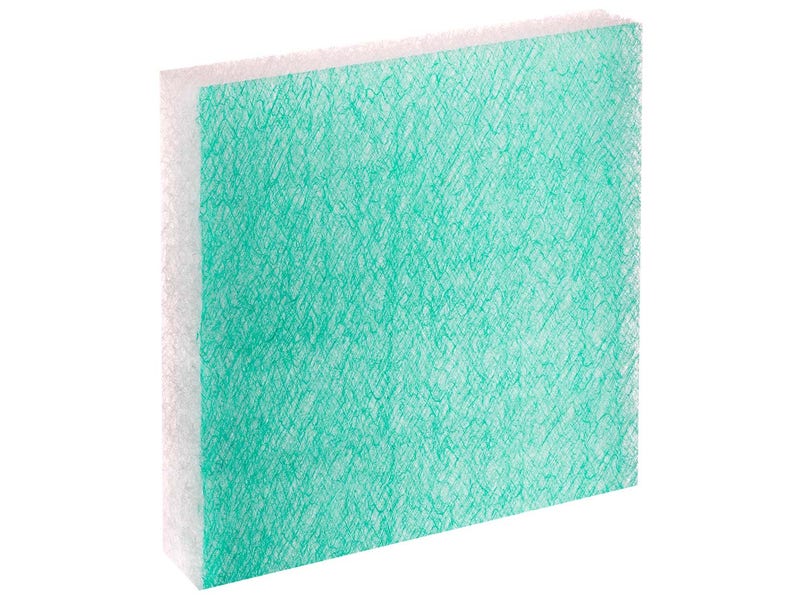

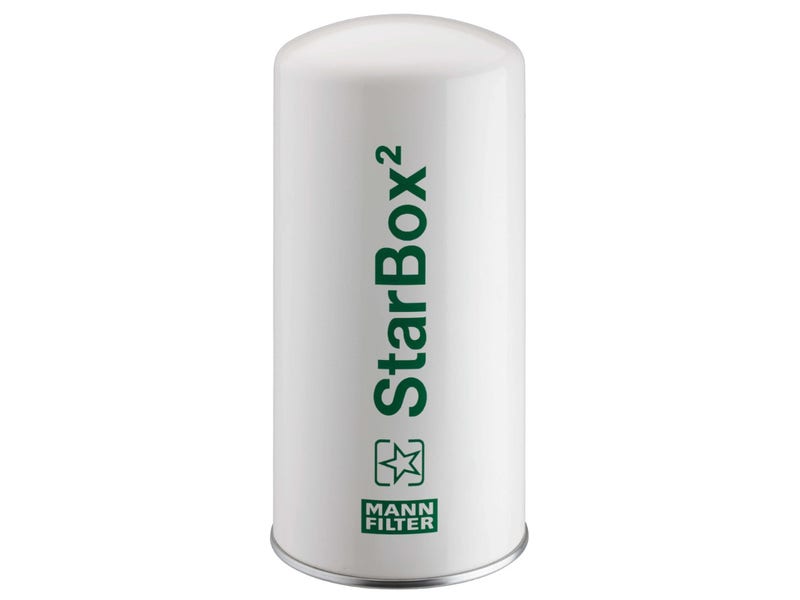

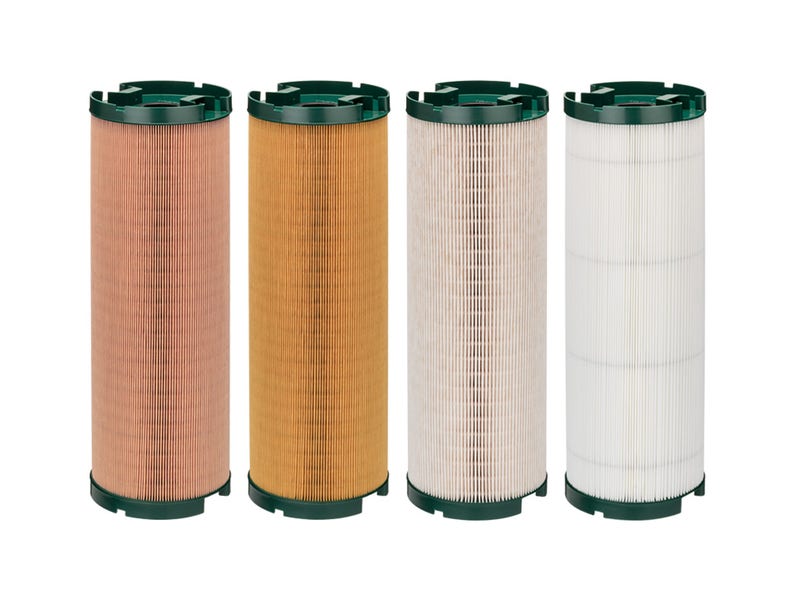

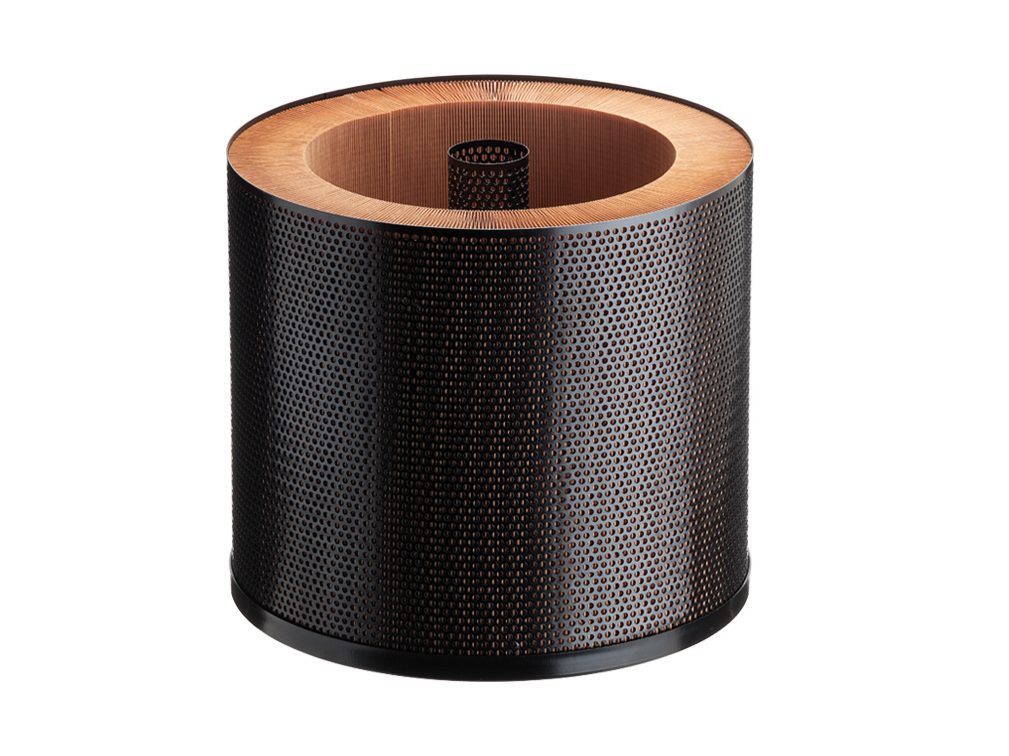

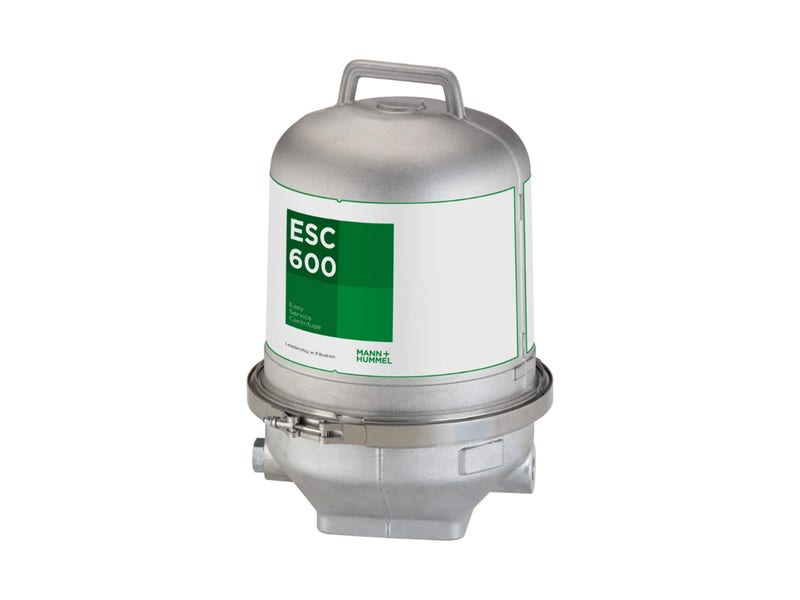

Filters that protect machines and processes. They separate oil, mist and particles in compressors, vacuum pumps, engines, machine tools, paint shops and power generation equipment.

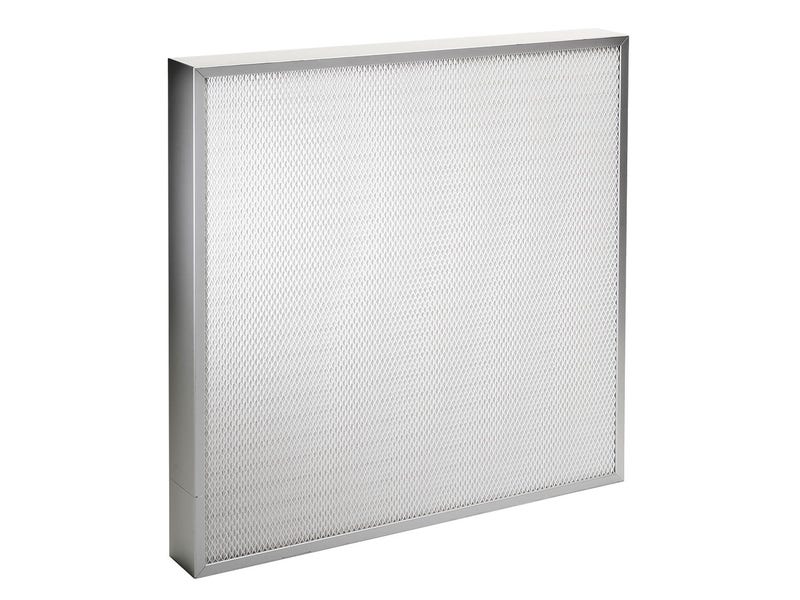

Cleanroom Panel Filters
Nanoclass Square range for controlled environments.
High-performance cleanroom panel air filters built to meet EPA, HEPA and ULPA standards. They capture airborne contaminants with exceptional efficiency to keep environments sterile — essential for pharmaceuticals, biotechnology and electronics manufacturing.
- Filter classes E11 to U16 with an individual scan test report per EN 1822 and ISO 29463.
- Minipleat technology for uniform laminar flow.
- Low pressure drop — extremely low with ePTFE membrane media — to cut energy costs.
- Flexible sealing: knife-edge (KE), polyurethane foam (FC), gel (TC) or flat gasket (FL) in many depths.

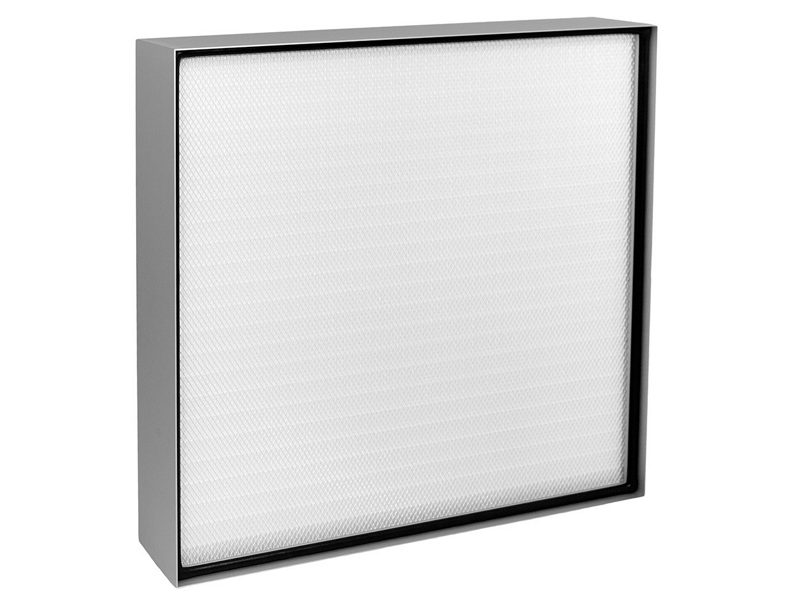

Nanoclass Square Pro Membrane KE
E11 – U16- ePTFE media, extremely low pressure drop
- Integral knife-edge for gel-seal grid ceilings
- Depth: 109 mm
- High tensile strength, 100% boron free

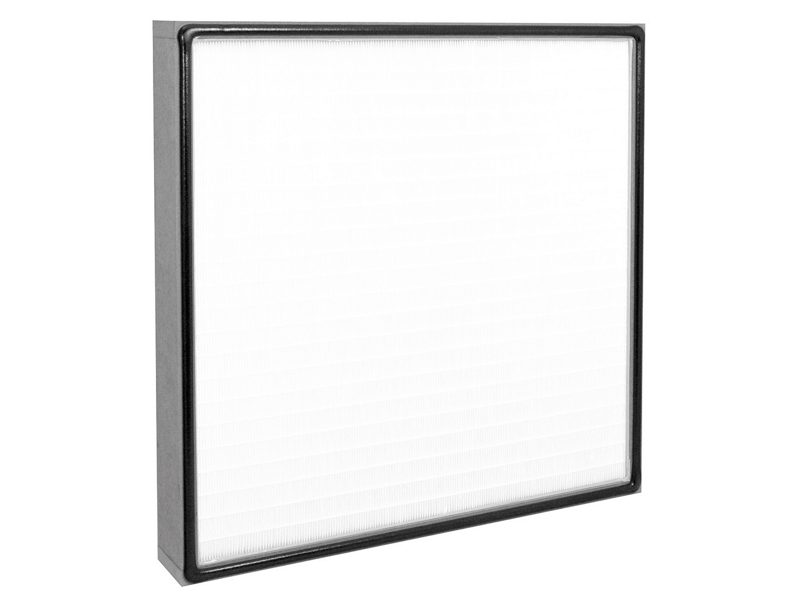

Nanoclass Square Pro Membrane FC
E11 – U16- ePTFE media, extremely low pressure drop
- Continuous polyurethane foam gasket
- Depths: 69, 90, 150 mm
- High tensile strength, 100% boron free

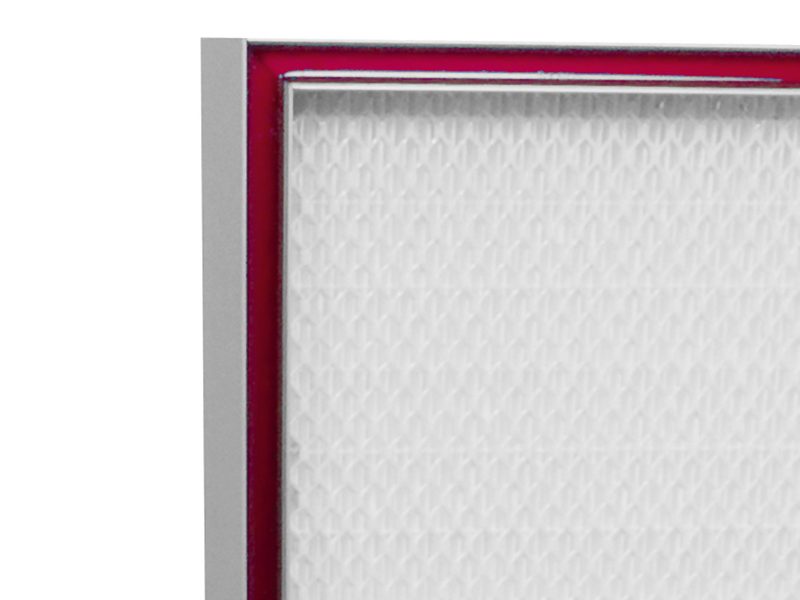

Nanoclass Square Pro Membrane TC
E11 – U16- ePTFE media, extremely low pressure drop
- Self-healing fluid gel gasket
- Depths: 71, 80, 104 mm
- High tensile strength, 100% boron free

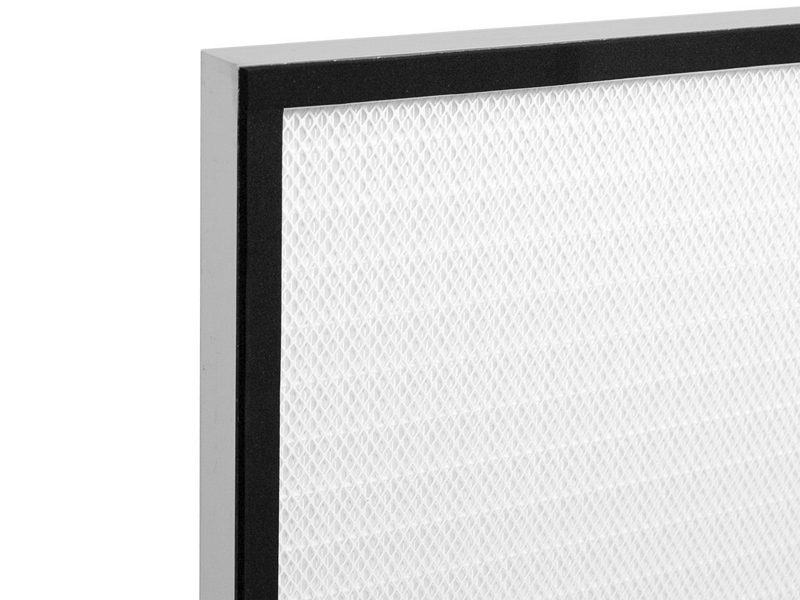

Nanoclass Square EF FL
E11 – U16- EPDM or neoprene flat gasket
- Depths: 30, 68, 90, 150 mm
- Low pressure drop
Nanoclass Square EF FC
E11 – U16- Continuous polyurethane gasket
- Depths: 69, 70, 78, 90, 110, 115, 150 mm
- Low pressure drop
Nanoclass Square EF KE
E11 – U16- Integral knife-edge for gel-seal grid ceilings
- Depths: 86, 109, 134 mm
- Low pressure drop
Nanoclass Square EF TC
E11 – U16- Self-healing fluid gel gasket
- Depths: 80, 83, 102, 104, 128 mm
- Low pressure drop

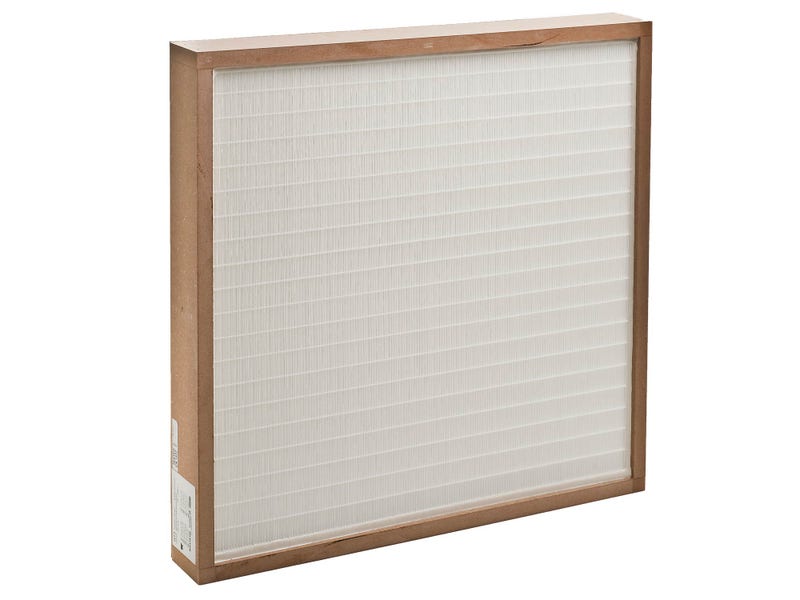

Nanoclass Square Select
E11 – H14- Various frame depths and types
- Low pressure drop
- Cost-effective EPA/HEPA option
Nanoclass Square Pro FL HT
E11 – U16- Temperature resistant up to 120°C
- Depths: 68 to 150 mm
- Low pressure drop

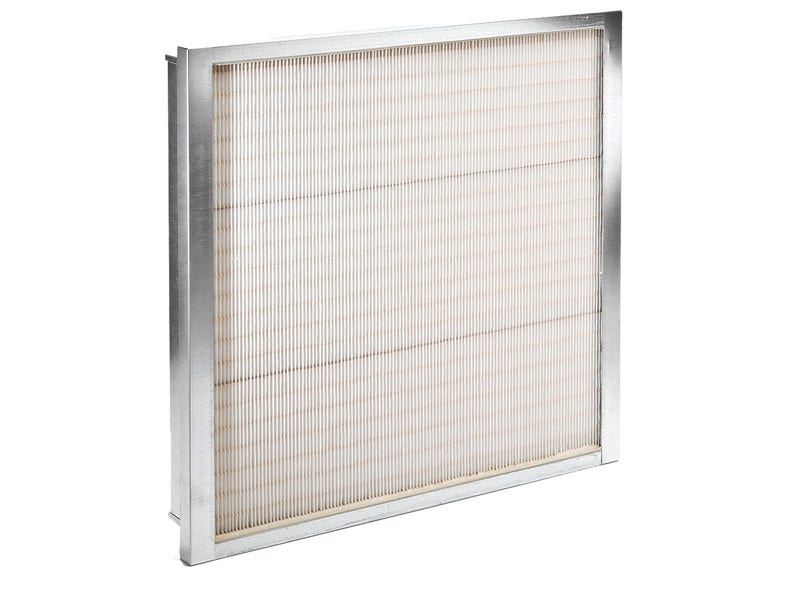

Nanoclass Square Flange HT
E11 – E12- Temperature resistant up to 120°C
- Depth: 88 mm
- Large filter area, high dust holding capacity
- Extremely high burst pressure
